Thông tin sản phẩm

INFORMATION
  • Insulated Conductor Systems
  • Insulated Conductor Systems
  • Insulated Conductor Systems
  • Insulated Conductor Systems
  • Insulated Conductor Systems
  • Insulated Conductor Systems

Insulated Conductor Systems

INQUIRYBACK


Country of origin: Taiwan



Product Type: Multiple Type

Insulated Conductor Rails



Conductor Material: Copper



Insulator Material: Plastic



Power Supply: 600V



Rail Rated Current: 50A/ 75A/ 100A/ 150A/ 200A



Collector Rated Current: 30A/60A/100A

  •




    1. Multiple Insulated Conductor Rails



    Model Rating
    CH3001 3P50A: 3P Multiple Insulated Conductor Rails
    CH3002 3P75A: 3P Multiple Insulated Conductor Rails
    CH3003 3P100A: 3P Multiple Insulated Conductor Rails
    CH3004 3P150A: 3P Multiple Insulated Conductor Rails
    CH3006 3P200A: 3P Multiple Insulated Conductor Rails
    CH4001 4P75A: 4P Multiple Insulated Conductor Rails
    CH4002 4P100A: 4P Multiple Insulated Conductor Rails
    CH4003 4P150A: 4P Multiple Insulated Conductor Rails
    CH4004 4P200A: 4P Multiple Insulated Conductor Rails
    CH6003 6P50A: 6P Multiple Insulated Conductor Rails
    CH6001 6P75A: 6P Multiple Insulated Conductor Rails
    CH6002 6P100A: 6P Multiple Insulated Conductor Rails












    2. Hanger: Insulated Conductor Systems





    Model Description
    CH3020 3P Hanger
    CH4020 4P Hanger
    CH6020 6P Hanger












    3. Strainer: Insulated Conductor Systems





    Model Description
    CH3030 3P Strainer
    CH4030 4P Strainer
    CH6030 6P Strainer








    4. Joiner: Insulated Conductor Systems





    Model Description
    CH3070 3P Joiner
    CH4070 4P Joiner
    CH6070 6P Joiner












    5. Collector*3: Insulated Conductor Systems







    Model Description
    CH3080 30A Collector*3
    CH3040 60A Collector*3
    CH3096 100A Collector*3












    6. Collector*4: Insulated Conductor Systems







    Model Description
    CH4080 30A Collector*4
    CH4040 60A Collector*4
    CH4090 100A Collector*4










    7. Collector*1: Insulated Conductor Systems







    Model Description
    CH3080-2 3P/4P/6P 30A Collector*1
    CH3040-3 3P/4P/6P 60A Collector*1
    CH3096-1 3P/4P/6P 100A Collector*1












    8. Carbon Brush+ Cable: Insulated Conductor Systems







    Model Description
    CH3090 3P/4P/6P 30A Carbon Brush+ Cable
    CH3050 3P/4P/6P 60A Carbon Brush+ Cable
    CH3096-2 3P/4P/6P 100A Carbon Brush+ Cable

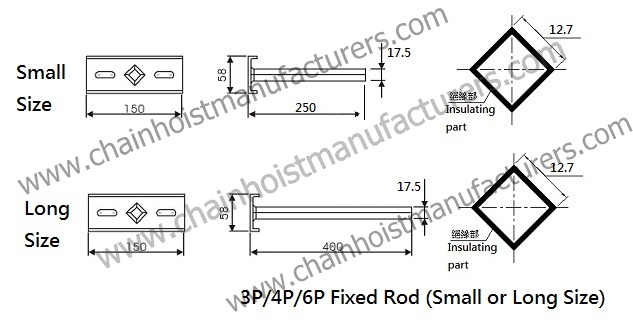

    9. Fixed Rod: Insulated Conductor Systems





    Model Description
    CH3060 Fixed Rod (12.7*250mm- Small Size)
    CH3061 Fixed Rod (12.7*400mm- Long Size)
